Custom Fabrication of an Acrylic Counter-top Display for the Retail Industry

Custom Fabrication of an Acrylic Counter-top Display for the Retail Industry

A customer in the retail industry contacted to National Plastics & Seals, Inc. in need of a custom-designed brochure holder. We worked closely with the client and designed the product to their specifications, using the AutoCAD drawings they provided. We used our techno CNC router, then assembled the product, working within extremely tight tolerances to ensure proper assembly. We then applied flame polishing to the edges and custom packaged the displays. We tested and inspected the product throughout to ensure all measurements were precise.

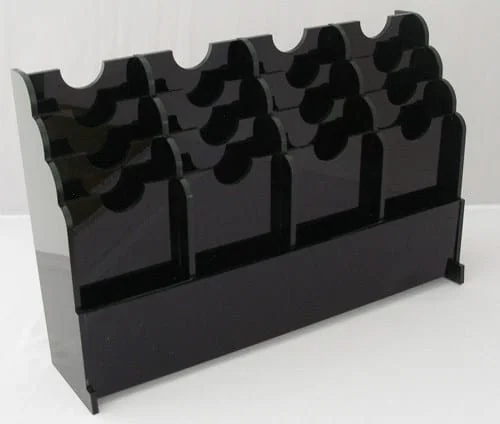

The custom brochure holder was made of black acrylic. It measured 20 wide and 12 inches tall and 3 inches deep. We were working with a tolerance of 1/16 inch. Upon final inspection and quality assurance, the product was shipped to Crystal Lake, Illinois. The client was completely satisfied with every aspect of the water tank and our service.

To learn more about this project, or for more information on our other products and services, please contact us

CUSTOM PLASTIC FABRICATION & CNC ROUTING PROJECT DETAILS

Product DescriptionThis custom acrylic display is used within the retail industry, to display product information.
Capabilities Applied/ProcessesPrimary:
CNC Routing
Secondary:
Assembly
  • Solvent Bonded
Flame Polishing
  • Polish Edges
Custom Packaging
Equipment Used to Manufacture PartTechno CNC Router
  • Automatic Tool Changer
  • 5' x 8' Bed

Overall Part DimensionsMaterial Thickness: 1/4"
Length: 20.00"
Width: 12.00"
Depth: 3.00"
Tightest Tolerances± 1/16"
Material UsedBlack Acrylic
In process testing/Inspection performedInspection and Measurements Taken During Machining Process to Ensure Proper Tolerances Were Met
Industry for UseRetail Industry
Volume100 Units
Delivery Time3 Weeks
Delivery LocationCrystal Lake, Illinois
Standards MetCustomer Supplied AutoCAD Drawings
  • Used for CNC Programming & Assembly

Product NameCountertop Brochure Holder
