Custom Design & Plastic Fabrication of Acrylic Pastry Displays

Custom Design & Plastic Fabrication of Acrylic Pastry Displays

A customer in the retail industry approached National Plastics & Seals, Inc. in need of a custom-designed pastry display which was to be used to house the donuts the client sells. Working closely with the customers on the entire process, we created the product tailored to their needs. First we designed the case, and then fabricated it. The process included sawing, edge finishing, drilling, and bending. We assembled it, applying solvent bonding, and then individually packaged each product. Our quality equipment used throughout included a table saw, a joiner/planer, a drill press, and calrod heater tables.

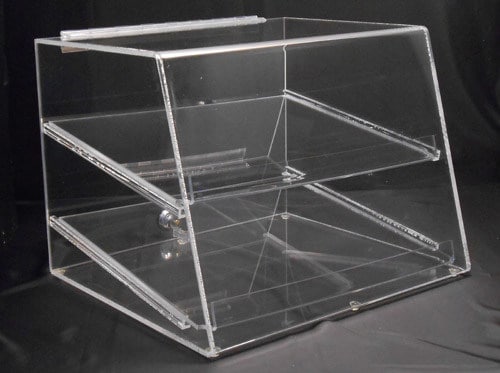

The finished display was made of clear acrylic. It measured 16 inches long and 20 inches wide. It was 3/16 inch thick. We ensured we met a tight tolerance of ± 1/16 inch.

Special features of the display case included removable shelves and hinged doors. We produced 100 units of the displays and shipped them to the client in Schaumburg, Illinois. They were highly satisfied with every aspect of the project. To learn more about this project, or for more information on our other products and services, please contact us

PLASTIC FABRICATION PROJECT DETAILS

Product Description This custom acrylic display is used to display pastries such as donuts that are for sale.
Capabilities Applied/Processes Primary:
Design
Fabrication
  • Sawing
  • Edge Finishing
  • Drilling
  • Bending
 Secondary:
Assembly
  • Solvent Bonding
Packaging
  • Individually Boxed
Equipment Used to Manufacture Product Table Saw
Joiner/Planer		 Drill Press
Calrod Heater Tables
Overall Product Dimensions Material Thickness: 3/16"
Length: 16.00"		 Width: 20.00"
Tightest Tolerances ± 1/16"
Material Used Clear Acrylic
Features Hinged Door Removable Shelves
In process testing/Inspection performed Parts Were Inspected During Fabrication to Insure Tolerances Were Met
Industry for Use Retail
Restaurants		 Stores
Volume 100 Units
Delivery Time 2 Weeks
Delivery Location Schaumburg, Illinois
Product Name Acrylic Pastry Display
