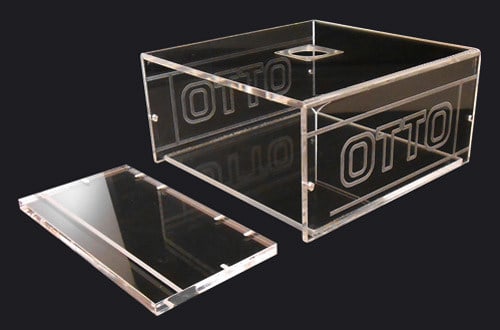

An electronics customer in Las Vegas was in need of a display that could be used to showcase one their products. Designed for a joy stick controller, it was intended to allow the product to be installed and demonstrated at trade shows.
We fabricated the product using a clear acrylic that was ¼” thick; this would give the case toughness and light weight characteristics. We fabricated the case using our Techno CNC router, which allowed us to maintain tolerances of 1/16″. The finished case measured 12″ in length, by 12″ in width, and 4″ high. The customer’s order required the fabrication of one part, which we created and delivered in one week. For more information on this project see the table below or contact us directly.
- Product Description
This custom acrylic showcase display is used within the trade show industry, to display product information.
- Capabilities Applied/Processes
- Primary:
CNC Routing
Secondary:
Assembly- Solvent Bonded
Flame Polishing- Polish Edges
Custom Packaging
- Equipment Used to Manufacture Part
Techno CNC Router
- Automatic Tool Changer
- 5′ x 8′ Bed
- Overall Part Dimensions
- Material Thickness: 1/4″
Length: 12.00″Width: 12.00″
Depth: 4.00″
- Tightest Tolerances
± 1/16″
- Material Used
Clear Acrylic
- In process testing/Inspection performed
Inspection and Measurements Taken During Machining Process to Ensure Proper Tolerances Were Met
- Industry for Use
Electronics Industry
- Volume
1 Unit
- Delivery Time
1 Week
- Delivery Location
Las Vegas, Nevada
- Standards Met
Customer Supplied AutoCAD Drawings
- Used for CNC Programming & Assembly
- Product Name
Custom Trade Show Display
