CNC Machining & Laser Engraving of an Acrylic Fragrance Display

CNC Machining and Laser Engraving of an Acrylic Fragrance Display

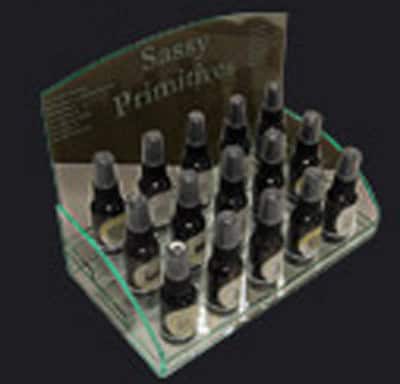

A customer in the cosmetics industry approached National Plastics & Seals, Inc. in need of a custom acrylic display to hold their perfumes. We worked closely with the client to ensure any and all needs were met and hopes were exceeded. We performed CNC machining to cut all components to size. Then, using our Epilog 75 watt laser engraver & cutting system, we applied laser engraving. After that we assembled and custom-packaged the displays for delivery.

The product was made of 3030 green edge acrylic. The finished display measured 14 inches long, 10 inches wide, and 3/16 inch thick. We worked within tolerances as tight as ± 1/16 inches. A special design feature of the display included holes to hold each perfume bottle. We inspected the product using calipers to ensure the hole dimensions were accurate.

National Plastics & Seals, Inc. produced 1,000 units of this custom acrylic display. We shipped them to the client in McHenry, Illinois, who was thrilled with the results. To learn more about this project, or for more information on our other products and services, please contact National Plastics & Seals, Inc.

PROJECT DETAILS OF THIS CNC MACHINING & LASER ENGRAVING PROJECT:

Product Description This custom acrylic display is used to hold and display perfumes.
CNC Machining & Laser Engraving Capabilities Applied/Processes Primary:
CNC Machining
  • Cut Components to Size
Laser Engraving		 Secondary:
Assembly
Packaging
  • Bubble Wrapped
  • Bulk Packed
Equipment Used to Manufacture Acrylic Product Epilog 75 Watt Laser Engraver & Cutting System
  • 18" x 24" bed Capacity

Overall Retail Product Display Dimensions Material Thickness: 3/16"
Length: 14.00"		 Width: 10.00"
Tightest Tolerances ± 1/16"
Material Used 3030 Green Edge Acrylic
Features Holds Each Bottle Separately
In process testing/Inspection performed Calipers Used to Inspect Proper Hole Dimensions
Industry for Use Cosmetic
Volume 1,000 Units
Delivery Time 2 to 4 Weeks
Delivery Location McHenry, Illinois
Standards Met Designed and Fabricated to Customer Drawing Concept
Product Name Acrylic Fragrance Display
